Home > Products > Chain Block > HSC Triangle Type Chain Block > 0.5t to 10t Vital Chain Pulley Block

0.5t to 10t Vital Chain Pulley Block

Share to:
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces

Basic Info

Model No.: HSZ-CB

Power Source: Hand Chain

Sling Type: Chain

Maximum Lifting Height: 3m

Certification: CE

Condition: New

Color: Yellow

Package: As Demand

Additional Info

Packaging: Neutral plywood box or carton box or as request color box

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: Promise delivery products on time

Certificate: CE

HS Code: 8425190000

Port: Tianjin Port,Shanghai Port,Any China Port

Product Description

Introduce of HSC Chain Block :

Save time and increase efficiency with the world`s first dual speed Manual Chain Hoist. HSZ-C innovative magnetic clutch technology senses the load and changes gears automatically to work seven times faster when repositioning an unloaded hook. The result is a significant reduction in labor costs and operator fatigue – something both your workers and your accountant will appreciate.


Safe, Reliable, Mechanical Brake
The HSZ-C gives you added protection with its double pawl springs, providing redundancy and extra-reliable operation of the brake mechanism. With a double-enclosed brake cover, you can be sure that dust, rain and dirt are kept out, and that that the mechanical brake activates instantly.

Efficient, Maintenance-Free Sealed Bearings
Low-maintenance features like sealed bearings protect from contamination and provide years of worry-free service. This contributes to the efficient drive chain and minimizes the manual effort required to operate
Automatic Speed Control
In an unloaded or lightly loaded state, a magnetic clutch is automatically activated allowing the hoist to operate in high-speed mode. Once a load heavier than approximately 10 per cent of capacity is applied, the magnetic clutch releases and the standard clutch activates, putting the hoist back into standard-speed mode.

All-Steel Gear Case &Hand Wheel Cover
Increased strength and dependability can be expected from the HSZ-C rugged steel housing and double-steel plate construction. When your lifting application needs high performance and unmatched durability, the HCB delivers.Electric Chain Hoist

Options
Chain bag to keep chain clean and out of the way
Corrosion resistant chain for tough environments
Custom lift lengths to suit your requirements
Plain or Geared Trolley mount

High Speed Features
When lightly loaded or unloaded, the load hook positioning is seven times faster than a standard
Magnetic quick-clutch mechanism shifts gears automatically from high to low speed based on load

Body
Heavy-duty, high-impact steel construction
Open load sheave for easy inspection and cleaning without dismantling the unit
Rugged gear case and hand wheel cover
Compact design for low headroom and lightweight portability

Hand Chain
Design: High-quality steel

Load Chain
Heat-treated, low-weight manganese alloy steel
Grade 100
High-impact steel chain guide
Standard Lift: 8 feet

Hooks
Forged, non-tempered carbon steel hooks open gradually and do not fracture
Self-closing top and bottom hooks with heavy-duty hook latch

Operation
Hand-chain operated
Reduced operator fatigue through efficient drive train

Gears
Double reduction gearing requiring very low effort to operate
Induction heat-treated and case-hardened
Enclosed to protect from dust and water

Bearings
Maintenance-free sealed bearings increase reliability and reduce required pull force required to lift loads

Break
Safe, reliable mechanical brake activates instantly
Double pawls for extremely reliable operation and instant brake activation

Enclosed to protect from dust, rain and dirt

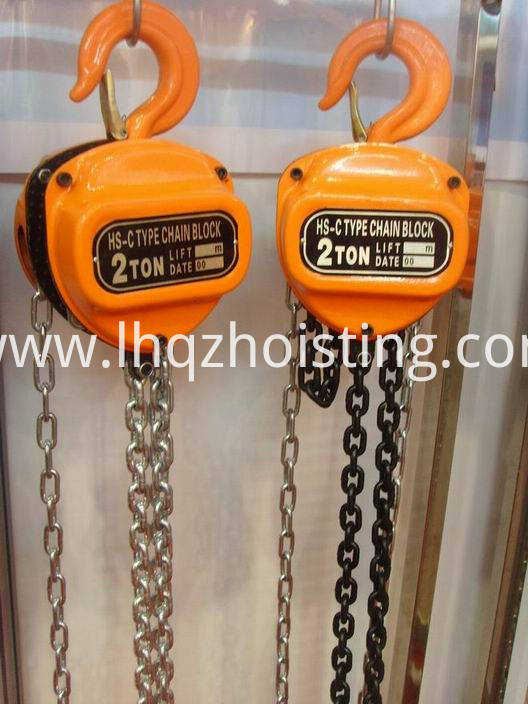

HSZ-CB chain block hoistIMG_1689


Our certification:

Certification

Our company :

2345 Image File Copy 2

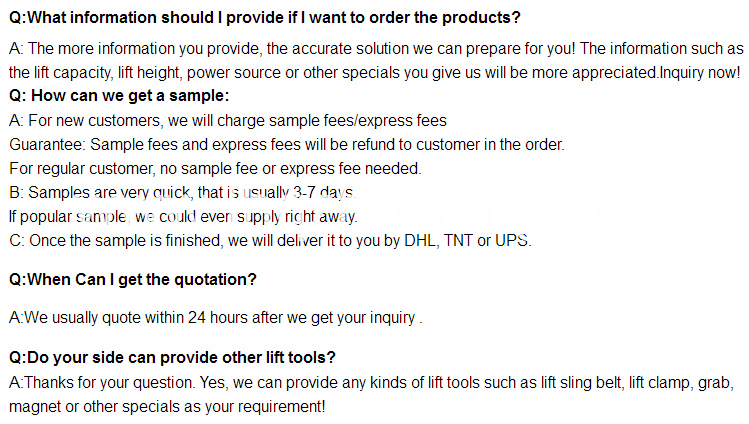

FAQ :

Faq

Contact us :




Looking for ideal 1T Chain Hoist Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 1.5T Chain Hoist are quality guaranteed. We are China Origin Factory of 2T Chain Hoist. If you have any question, please feel free to contact us.
